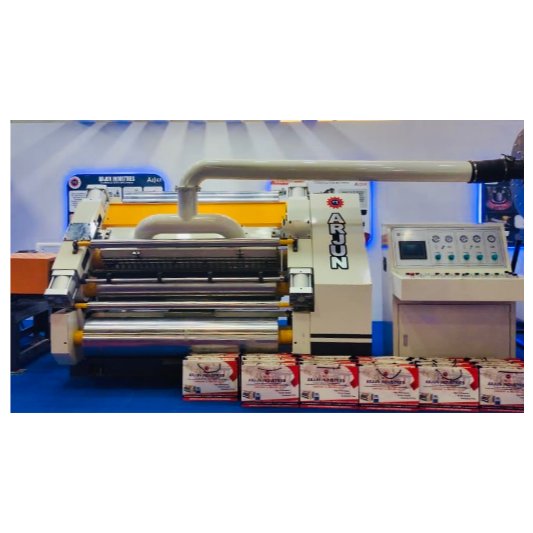

Arjun DuraFace 280 – Fingerless Oblique Type Single Profile Corrugating Machine

(Oil Heating Model with Heavy-Duty Gimbal Gearbox)

Product Overview

The DuraFace 280 is a high-performance, heavy-duty single profile oblique fingerless corrugating machine engineered for precision, durability, and consistent output. Designed with advanced bearing-mounted oblique technology, this machine ensures superior flute formation, reduced wear, and smooth operation—making it ideal for modern corrugation plants aiming for high efficiency and reliability.

Key Technical Specifications

Roller Configuration

• Flute Rollers: Ø280 mm
  • Material: 52CrMo Alloy Steel
  • Surface Treatment: UV Fluting
  • Hardness: Up to 55° HRC
  • Coating: Tungsten Coated for extended life & wear resistance
• Pressure Roller: Ø290 mm
  • Material: C-45 Steel
  • Finish: Hard Chrome Coated

Heating & Preheating System

• Heating Type: Oil Heating Model
• Pre-Heaters: 2 Nos.
  • Diameter: Ø330 mm
• Ensures uniform heat distribution for consistent bonding and flute quality

Drive & Transmission

• Gearbox: Heavy-Duty Gimbal Gearbox
• Motor: Three-phase motor with A.C. Drive
• Smooth power transmission with minimal vibration and high torque efficiency

Performance & Speed

• Design Speed: 80 meters/min
• Working Speed: 50–55 meters/min (on Oil Heating)
• Optimized for stable production with excellent board quality

Gumming & Control System

• Gumming System: Pneumatic gum adjustment (Patta-less design)
• Gum Application: Uniform and controlled for better bonding
• Control Panel: Advanced Touch Screen HMI for easy operation and monitoring
• Motorised Gum Rotation System for continuous and consistent adhesive flow

Machine Construction

• Body Structure: High-grade heavy casting
• Designed for maximum rigidity, reduced vibration, and long operational life

Salient Features

• ✔ Fingerless technology for reduced paper damage and higher flute quality
• ✔ Oblique type design ensures better flute formation and higher bonding strength
• ✔ Tungsten-coated flute rollers for extended durability and minimal maintenance
• ✔ Heavy-duty gearbox ensures smooth and reliable continuous operation
• ✔ User-friendly HMI panel for precise control and ease of use
• ✔ Suitable for high-quality corrugated board production

Installation Note

• All air sources and pneumatic connections are to be provided by the customer.

Why Choose DuraFace 280?

Built for performance and longevity, the DuraFace 280 delivers a perfect balance of speed, strength, and precision, making it an excellent investment for corrugation units looking to enhance productivity while maintaining top-tier board quality.
