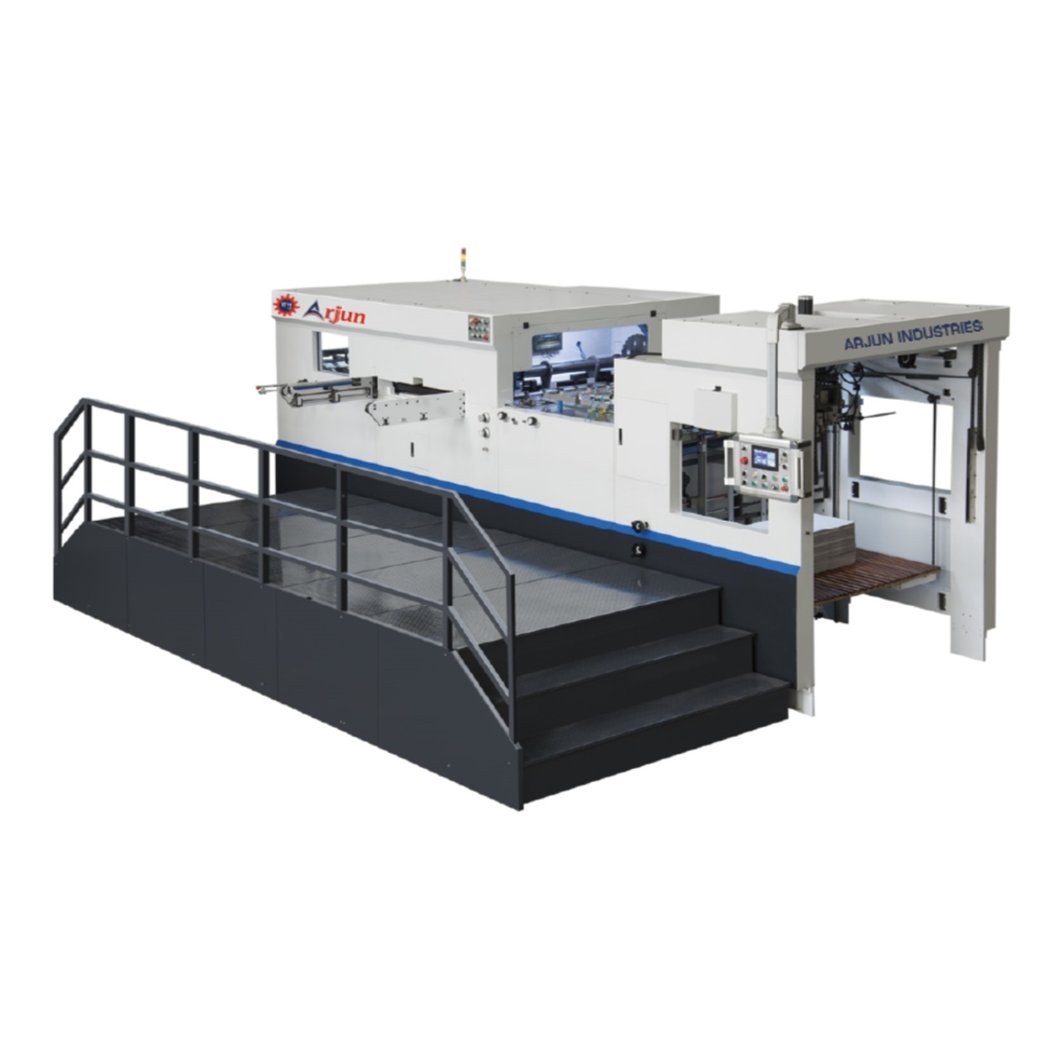

AIM-1300S Automatic Die Cutting & Creasing Machine

(High-Speed Platen Type | Heavy-Duty | Precision Cutting Solution)

Product Overview

The AIM-1300S Automatic Die Cutting & Creasing Machine is a robust, high-precision platen-type die cutter designed for paperboard, corrugated board, and packaging applications. Engineered with advanced PLC automation, high-pressure capacity, and superior European-standard safety systems, this machine ensures accurate die cutting, creasing, and embossing at high speeds with maximum reliability.

Applications

• Corrugated box die cutting
• Carton and packaging production
• Paperboard cutting and creasing
• Embossing and speciality packaging jobs

Key Features

Safety, Efficiency & Automation

• ✔ Advanced PLCcentralisedd control system for real-time monitoring and diagnostics
• ✔ European safety standard design ensuring maximum operator protection
• ✔ Intelligent alarm & auto-stop system for paper jam, double sheet, or malfunction
• ✔ Reduced wastage and improved production safety

High-Performance Mechanical System

• ✔ Heavy-duty platen press with 350 Ton pressure capacity
• ✔ High-strength QT500-7 ductile iron structure for long-term stability
• ✔ Precision Cr-Ni-Mo alloy crankshaft & worm gear system for durability
• ✔ Pneumatic clutch with large flywheel ensures smooth high-speed operation

Advanced Feeding Section

• ✔ High-precision Becker vacuum feeder head suitable for paperboard & corrugated sheets
• ✔ Double-sheet detection system for accurate feeding
• ✔ Adjustable side lay & front lay system for precise sheet alignment
• ✔ Non-stop feeding system improves productivity and reduces downtime

Precision Die Cutting Section

• ✔ High-accuracy cam indexer system for exact sheet positioning
• ✔ Ti-Al alloy gripper bars & wear-resistant chains for long life
• ✔ Easy die change system with pneumatic locking & overturning frame
• ✔ Centralised lubrication system with oil pressure monitoring

Efficient Delivery Section

• ✔ Automatic sheet alignment and stacking system
• ✔ Non-stop delivery system for continuous operation
• ✔ Chain protection and sheet overrun detection for safety
• ✔ Tag insertion system for sheet counting and tracking

Technical Specifications

• Model: AIM-1300S
• Max Sheet Size: 1300 × 980 mm
• Min Sheet Size: 470 × 400 mm
• Max Die Cutting Size: 1290 × 970 mm
• Die Cutting Accuracy: ≤ ±0.15 mm
• Max Pressure: 350 Tons
• Max Speed: 5000 Sheets/Hour
• Stock Range:
  • Paperboard: 0.2 – 2 mm
  • Corrugated Board: up to 8 mm
• Feeding Pile Height: 1400 mm
• Delivery Pile Height: 1200 mm
• Power Requirement: 3 Phase, 380V, 50Hz
• Main Motor: 11 kW
• Total Power: 17.8 kW
• Machine Weight: 18 Tons (Approx.)
• Dimensions: 6000 (+1800) × 2350 (+1900) × 2350 mm

Control & Electrical System

• PLC-based intelligent control system with touch screen interface
• Multi-language support for easy operation
• Real-time fault diagnosis and system monitoring
• Premium components from Schneider, Omron, Panasonic, NSK, Airtac

Key Advantages

• ✔ High-speed production with superior accuracy
• ✔ Heavy-duty structure for long-term industrial use
• ✔ Low maintenance with high durability components
• ✔ User-friendly automation with smart diagnostics
• ✔ Ideal for large-scale packaging and corrugation industries

Why Choose AIM-1300S?

The AIM-1300S combines power, precision, and automation, delivering consistent performance even under heavy workloads. It is the perfect solution for manufacturers looking to increase output, reduce wastage, and maintain top-quality finishing standards in packaging production.
