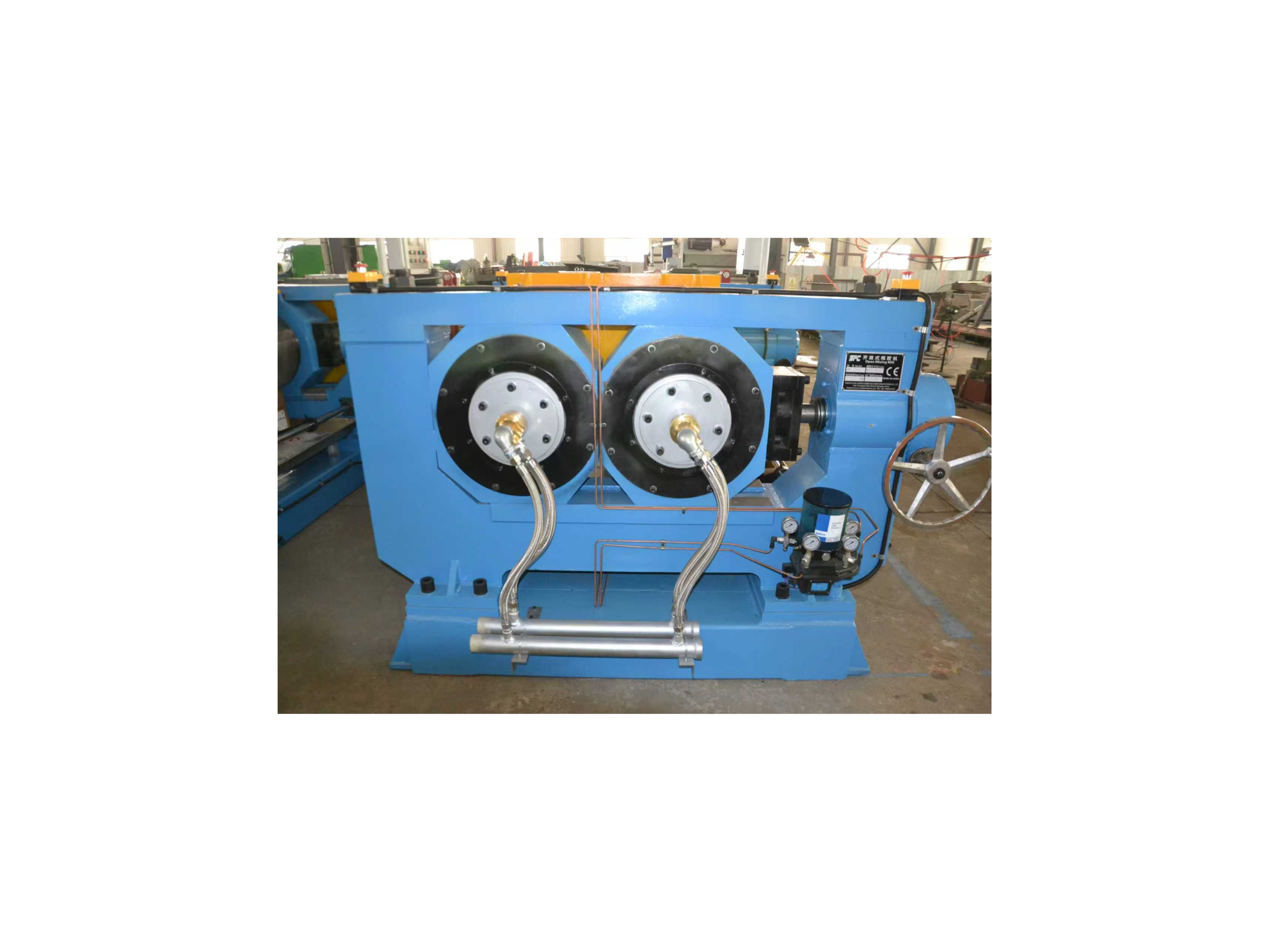

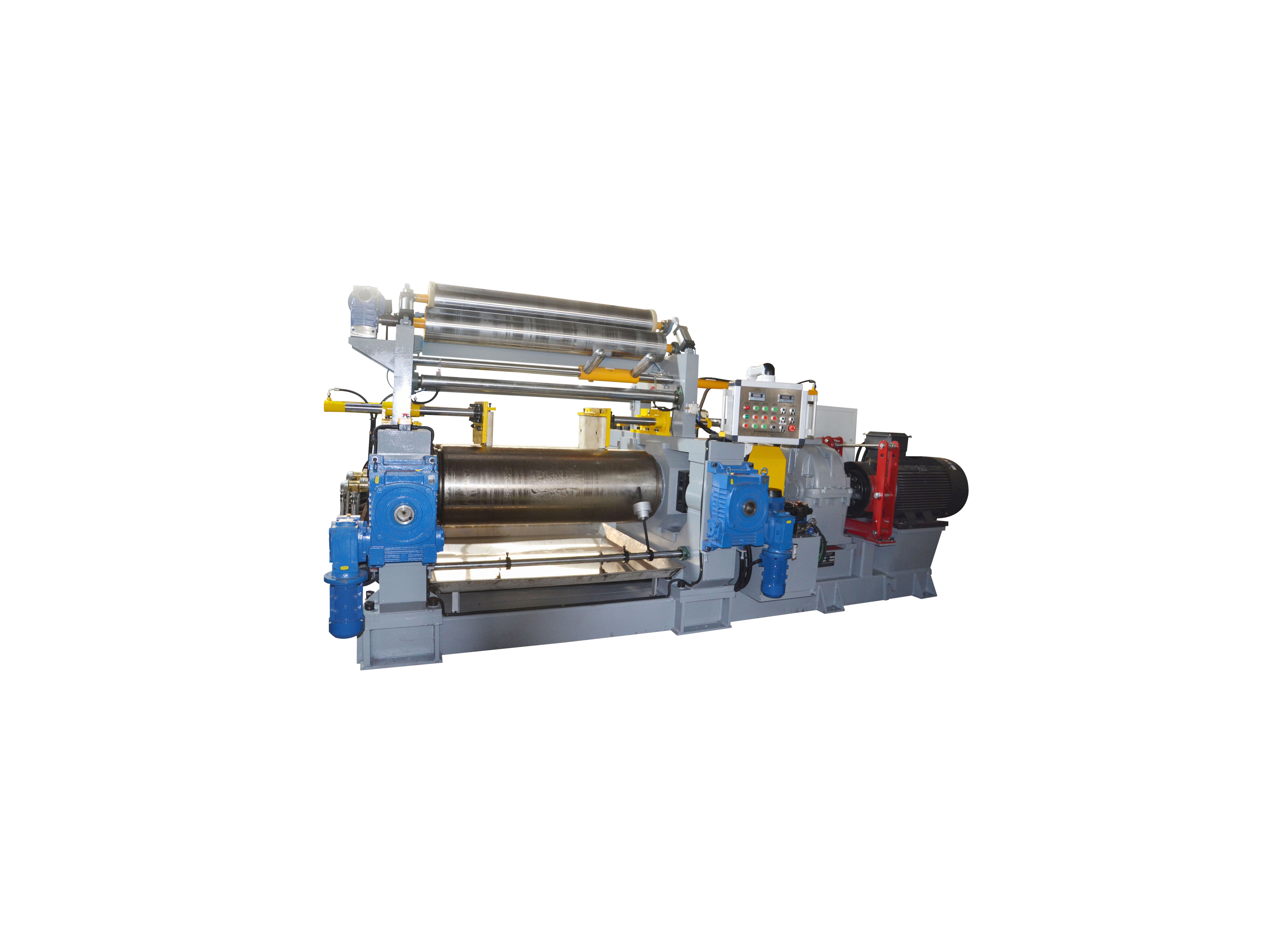

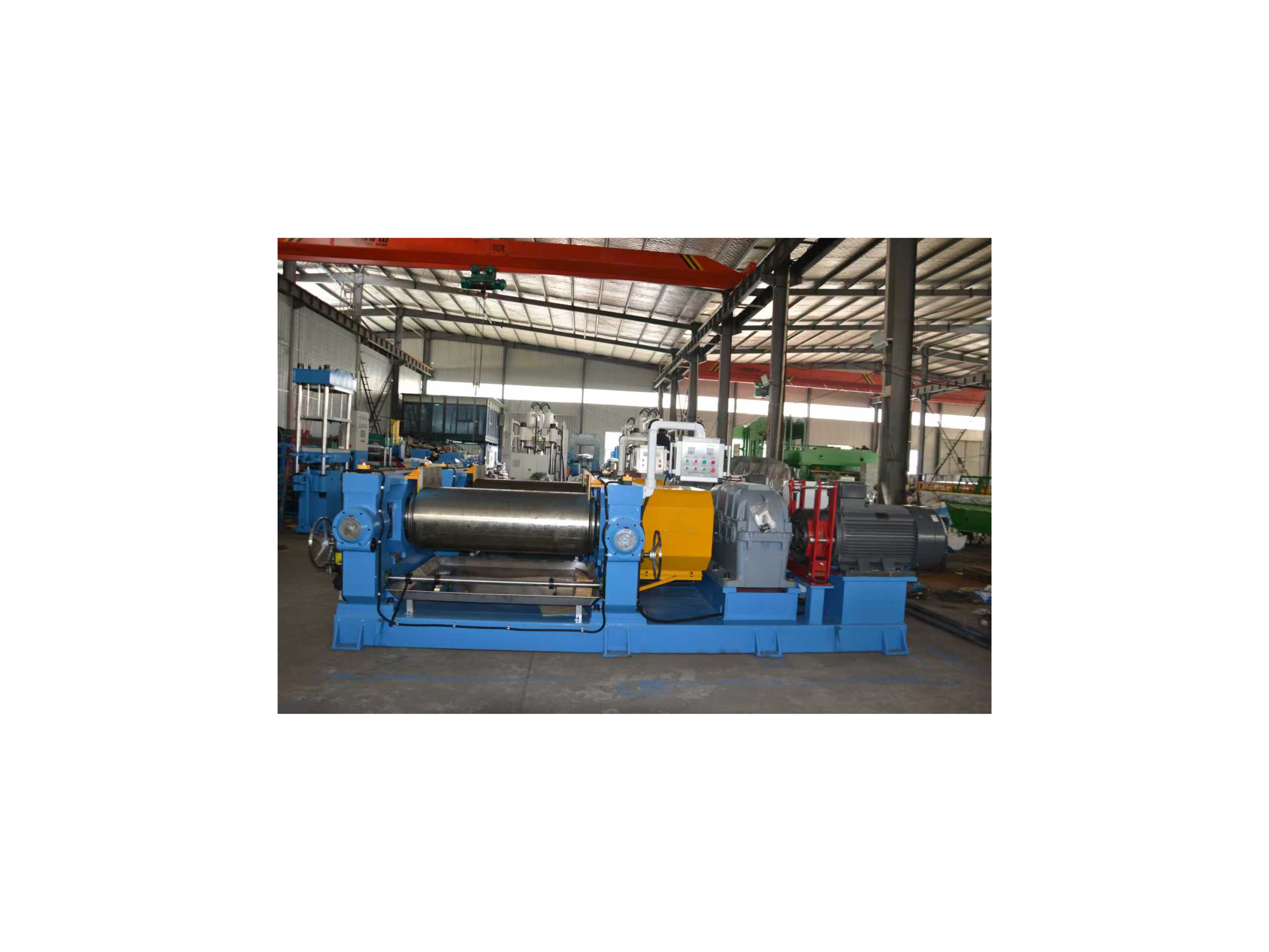

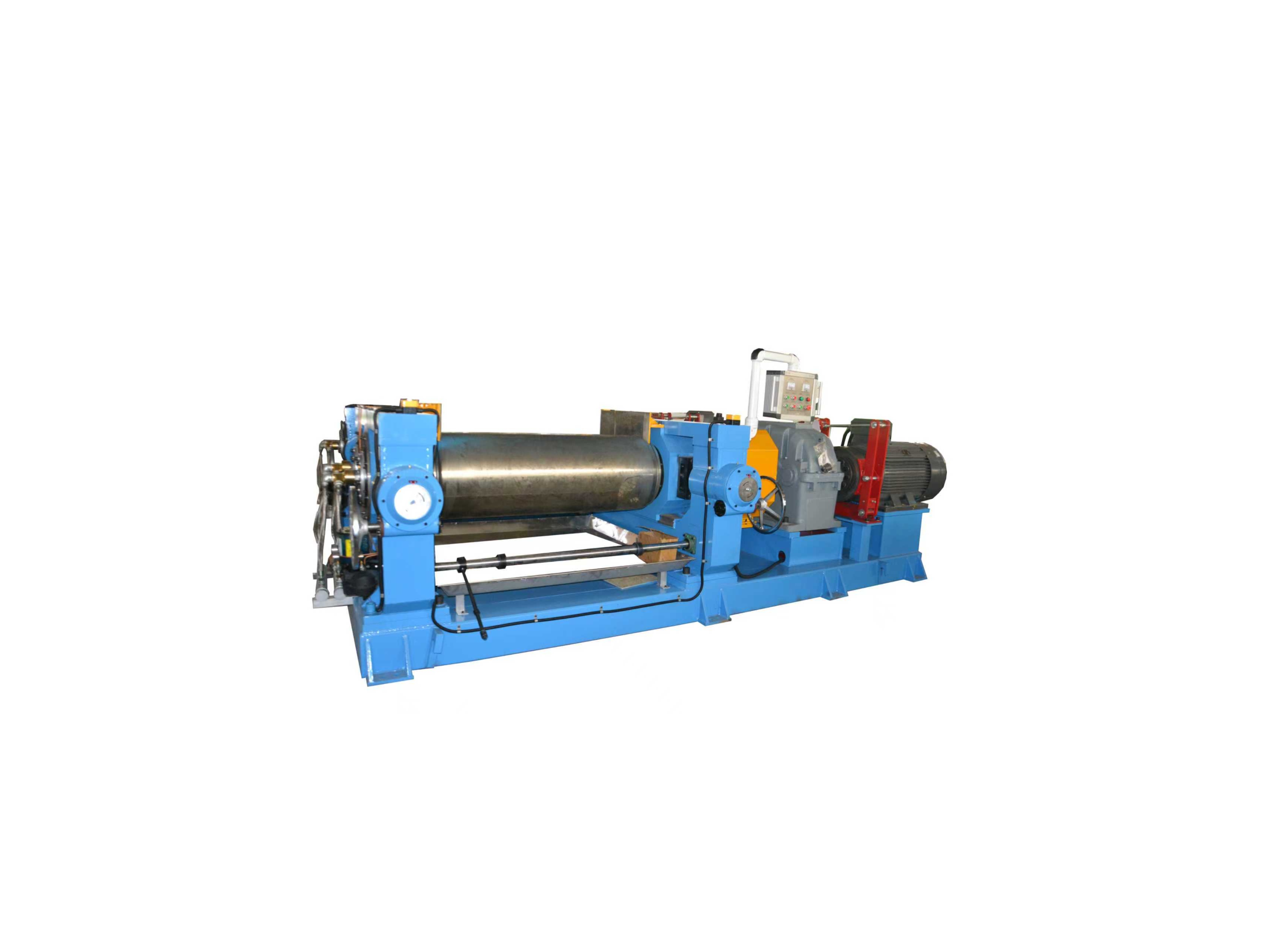

Two-Roll Mixing Mill: Precision Engineering for Superior Compound Dispersion

Our Two-Roll Mixing Mill is engineered for maximum reliability and efficiency in rubber and silicone compounding. It features an automatic, leak-free lubrication system with labyrinth seals to minimize maintenance and operational costs. The robust, single-base design arrives pre-wired, eliminating the need for a concrete foundation and ensuring rapid, cost-effective installation.

Precision-hardened steel rollers with adjustable friction ratios ensure optimal homogenization and dispersion for consistent, high-quality output. With a centralized control panel for operator safety and a power range from 5.5 kW to 280 kW, this mill is built for continuous, heavy-duty production.

Key Advantages:

• Leak-Free Lubrication: Reduces oil consumption and maintenance.

• Plug-and-Production Design: Pre-wired and foundation-free for quick startup.

• Precision Rollers: Guarantee superior compound quality and dispersion.

• Robust Drive System: Ensures reliable performance under continuous load.

• Regarding packing and delivery:
  1.Packing:Standard Export Packages .
  2. The delivery time for one set XK-560 rubber mixing machine is 35 working days.

  	Item	XK-160	XK-250	XK-360	XK-400	XK-450	XK-550	XK-560	XK-660	XK-710
  Roll diameter	mm	160	250	360	400	450	550	560-510	660	710
  Roll working length		320	620	900	1000	1200	1500	1530	2130	2200
  Front roll linear speed	r/min	9	16.3	16.7	19.3	21.8	22.5	27.2	28	31.9
  Speed ratio of rolls		01: 01.4	01: 01.1	01: 01.3	01: 01.3	01: 01.3	01: 01.2	01: 01.2	01: 01.2	01: 01.5
  Max roll space	mm	4.5	8	10	10	12	16	15	0.5-15	0.5-15
  Compound feeding capacity	kg	1-2	10-15	20-25	18-35	50	50-65	50-65	165	190
  Motor power	kW	5.5	18.5	30	45	55	110	90	240	280
  Dimensions(L× W× H)
  L	mm	1133	2722	4200	4920	5405	6646	6270	7280	8185
  W	mm	920	1115	1780	1780	1740	2736	2282	3400	3910
  H	mm	1394	1345	1760	1800	1790	2105	2000	2530	2270
  Gross weight	T	~2	~3.2	~6.5	~8	~11.4	~22	~22.5	~49	~51
