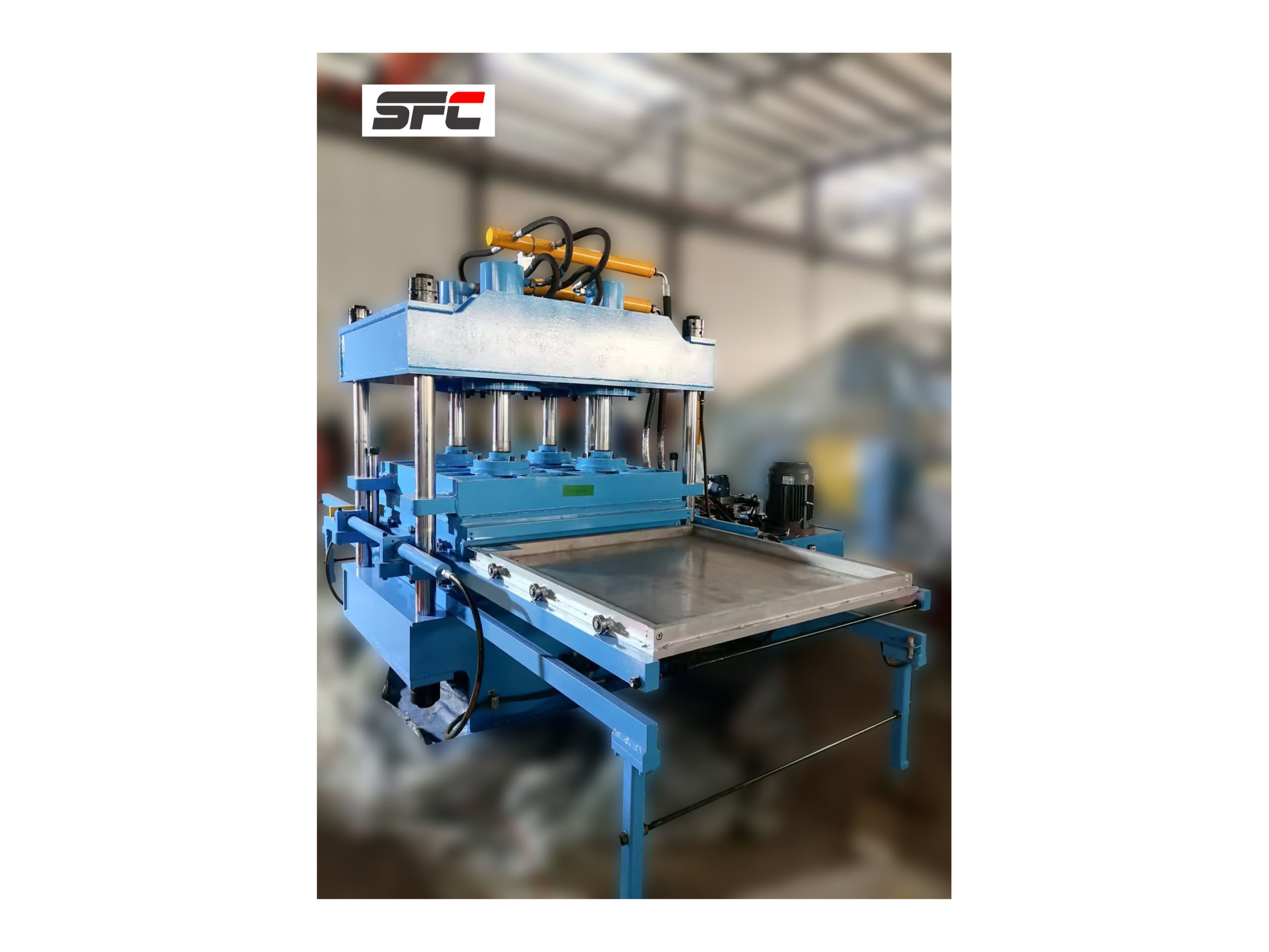

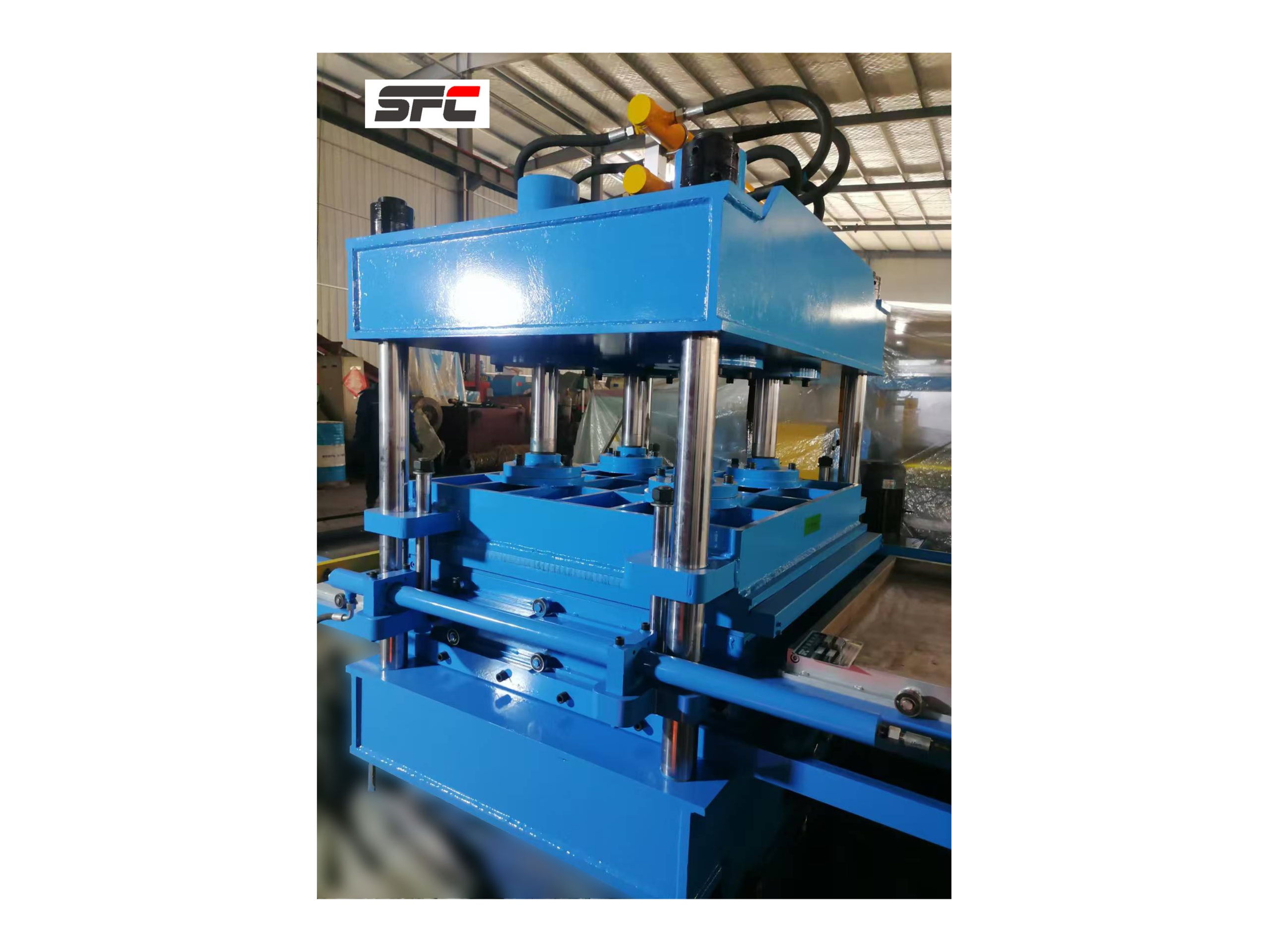

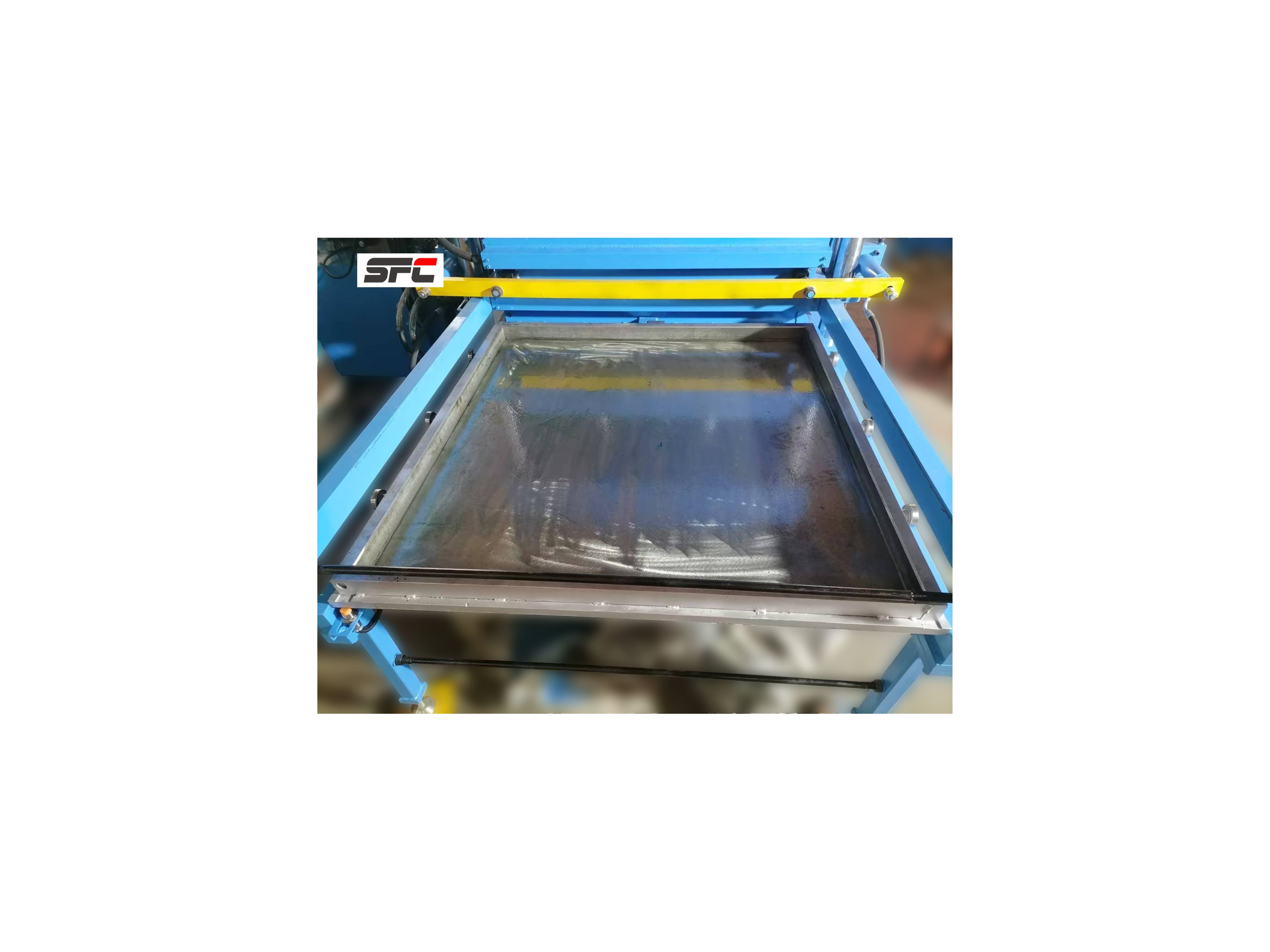

Rubber Tiles vulcanizing press
$99.00Listed in USD • Prices negotiable
Industrial MachineryMOQ: 1 Pieces
tiles vulcanizing pressrubber tiles pressfloor tilesplate vulcanizing presscuring press
Supplier Information
Q
Qingdao Shun Cheong rubber machinery manufacturing co., ltd.heong rubber
Manufacturer
Qingdao, china
New Supplier
Specifications
HS Code:8477800000
Specification:ISO, CE, SGS
Automatic Grade:Automatic
Product Description
Rubber Vulcanizing Press,Rubber Floor Tiles Vulcanizing Press, Rubber Tiles Vulcanizing Press XLB-D550X550X4
Specifications
1. ISO 9001: 2015/CE/SGS
2. Without oil spilling
3. It makes rubber heat resistant
4. Rubber bricks and tiles making machine
5. Any tonne and size according to customer's request.
6. One year guarante
Specifications
1. ISO 9001: 2015/CE/SGS
2. Without oil spilling
3. It makes rubber heat resistant
4. Rubber bricks and tiles making machine
5. Any tonne and size according to customer's request.
6. One year guarante
Rubber press machine of feature
1, we usually design as clients' products and details request. Our machine is 4 working layers, 1 hour can made 8 pcs rubber floor. We can also according your needs. And decide the working layers.
2. The machine is matched with manual push-out device.
3, we also can provide the different size of the molds, from 20mm to 75mm thickness.
4, rubber mixer can also provided, if needed
5, The press with 12 pcs molds and rubber mixer is only 8m3 of the flooring area, it can be LCL for loading, So the sea freight is very cheap.
6. We also can according to the customers' requirement, and design the non-standard type of rubber tile vulcanizing machine
1, we usually design as clients' products and details request. Our machine is 4 working layers, 1 hour can made 8 pcs rubber floor. We can also according your needs. And decide the working layers.
2. The machine is matched with manual push-out device.
3, we also can provide the different size of the molds, from 20mm to 75mm thickness.
4, rubber mixer can also provided, if needed
5, The press with 12 pcs molds and rubber mixer is only 8m3 of the flooring area, it can be LCL for loading, So the sea freight is very cheap.
6. We also can according to the customers' requirement, and design the non-standard type of rubber tile vulcanizing machine
| Model | XLB-D/Q350X350X1(2) | XLB-D/Q400X400X2(4) | XLB-D/Q550X550X2(4) | XLB-D/Q650X650X2(4) | XLB-D/Q750X850X2(4) |
| Nominal pressure(MN) | 0.25 | 0.50 | 0.60/0.80 | 1.00 | 1.60 |
| Plate size(mm) | 350X350 | 400X400 | 550X550 | 650X650 | 750X850 |
| Plate clearance(mm) | 125 | 125 | 125 | 125 | 125 |
| Working layer number | 1(2) | 2(4) | 2(4) | 2(4) | 2(4) |
| Plate unit pressure(Mpa) | 1.56 | 3.1 | 3.2 | 2.8 | 2.5 |
| L | 1200 | 1400 | 1650 | 1410 | 1900 |
| W | 400 | 550 | 600 | 680 | 950 |
| H | 1300 | 1500 | 1600 | 1750 | 2000 |
| Weight(kg) | 800 | 1300 | 1500 | 3500 | 6500(7500) |
