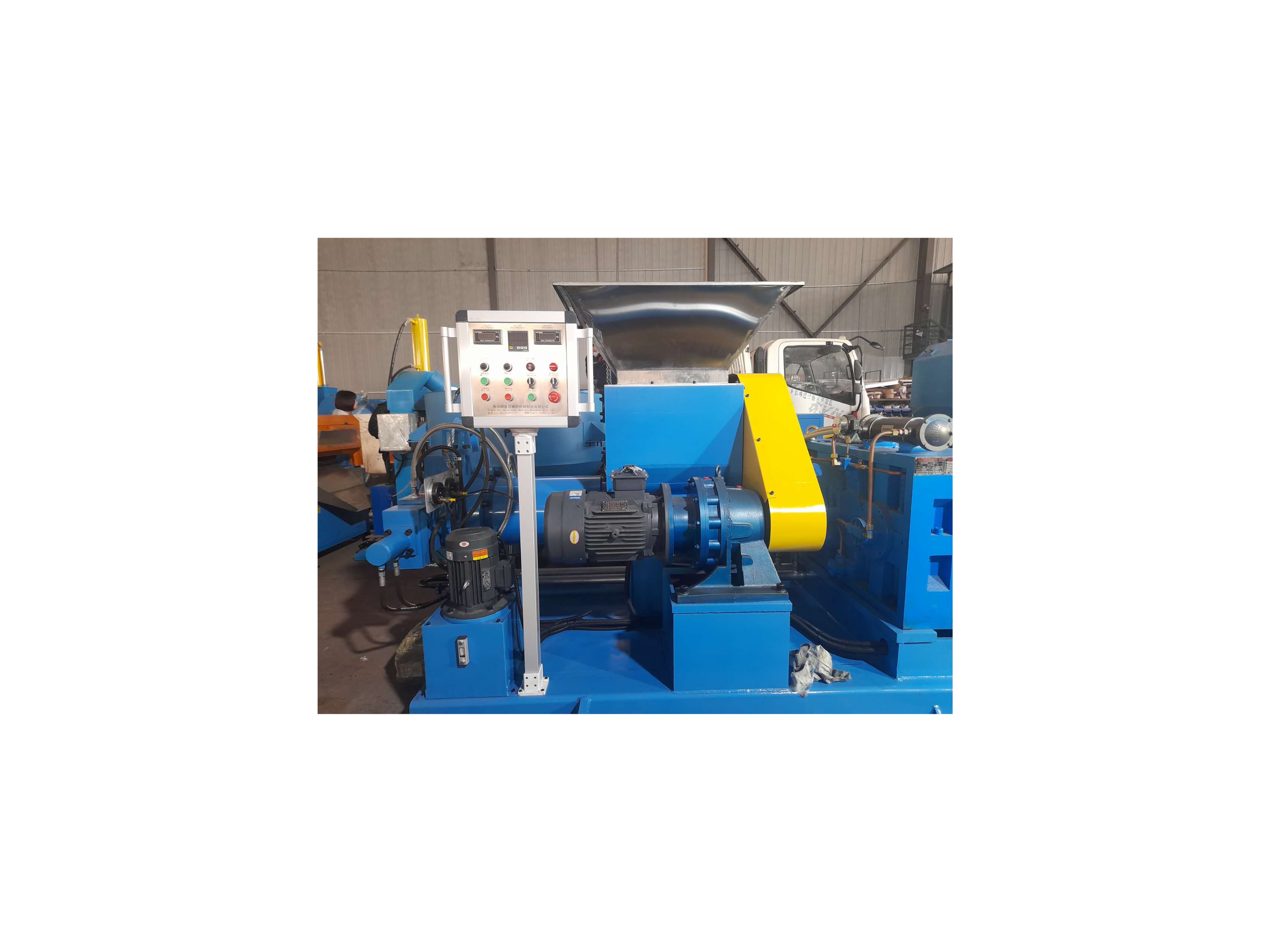

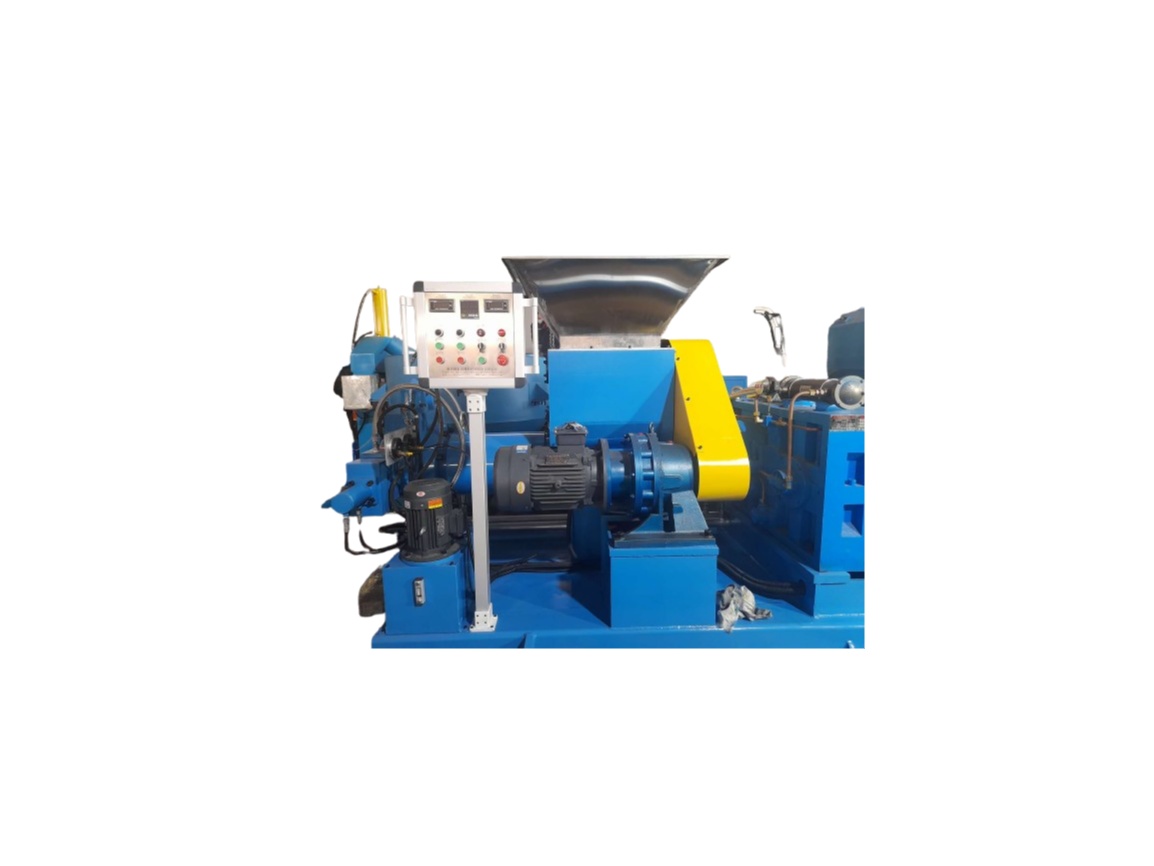

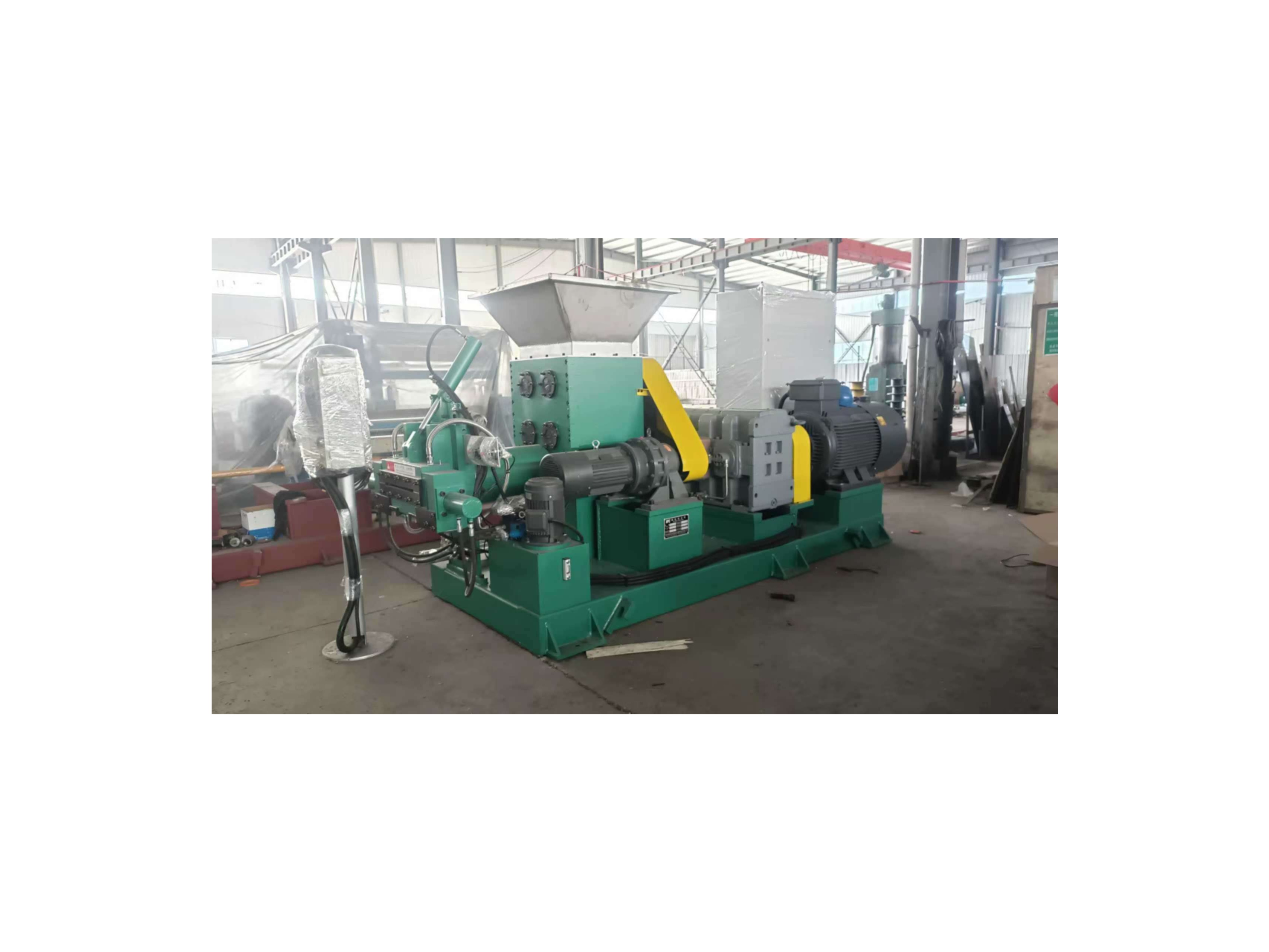

Forced feed Rubber Strainer extruder
$99.00Listed in USD • Prices negotiable
Industrial MachineryMOQ: 1 Pieces
extruder,Force feed extruderfeed extrudertread extruder
Supplier Information
Q
Qingdao Shun Cheong rubber machinery manufacturing co., ltd.heong rubber
Manufacturer
Qingdao, china
New Supplier
Specifications
Origin:Qingdao, China
HS code:8477800000
Production Capacity:500 Sets/Year
Type of General rubber machinery:Rubber Strainer
Product Description
Screw diameter: 150mm
Screw Length -diameter ratio: 5: 1
Screw model: Double headed isometric such deep
1. Application:
It's used for straining the material of natural or reclaimed rubber out.
It can also be used to strain vamp glue and inner tire compound.
2. Feature:
(1). Screw form double threads, equal pitch and depth
(2). Match a single head or cutter head with hydraulic tightening
(3). Jacketed type barrel can be cooled for cooling the rubbers effectively.
(4) Smoothly running and high output.
(5) Equipped with die-head auto opening system when electric power is cut off.
3. Structure of the rubber strainer
(1). The rubber strainer consists of end, body, screw, reducer,
Coupling, motor, hydraulic head, base, water (steam) pipe and cabinet, etc.
(2). There is groove between the body and bush for running the steam or cooling water. The

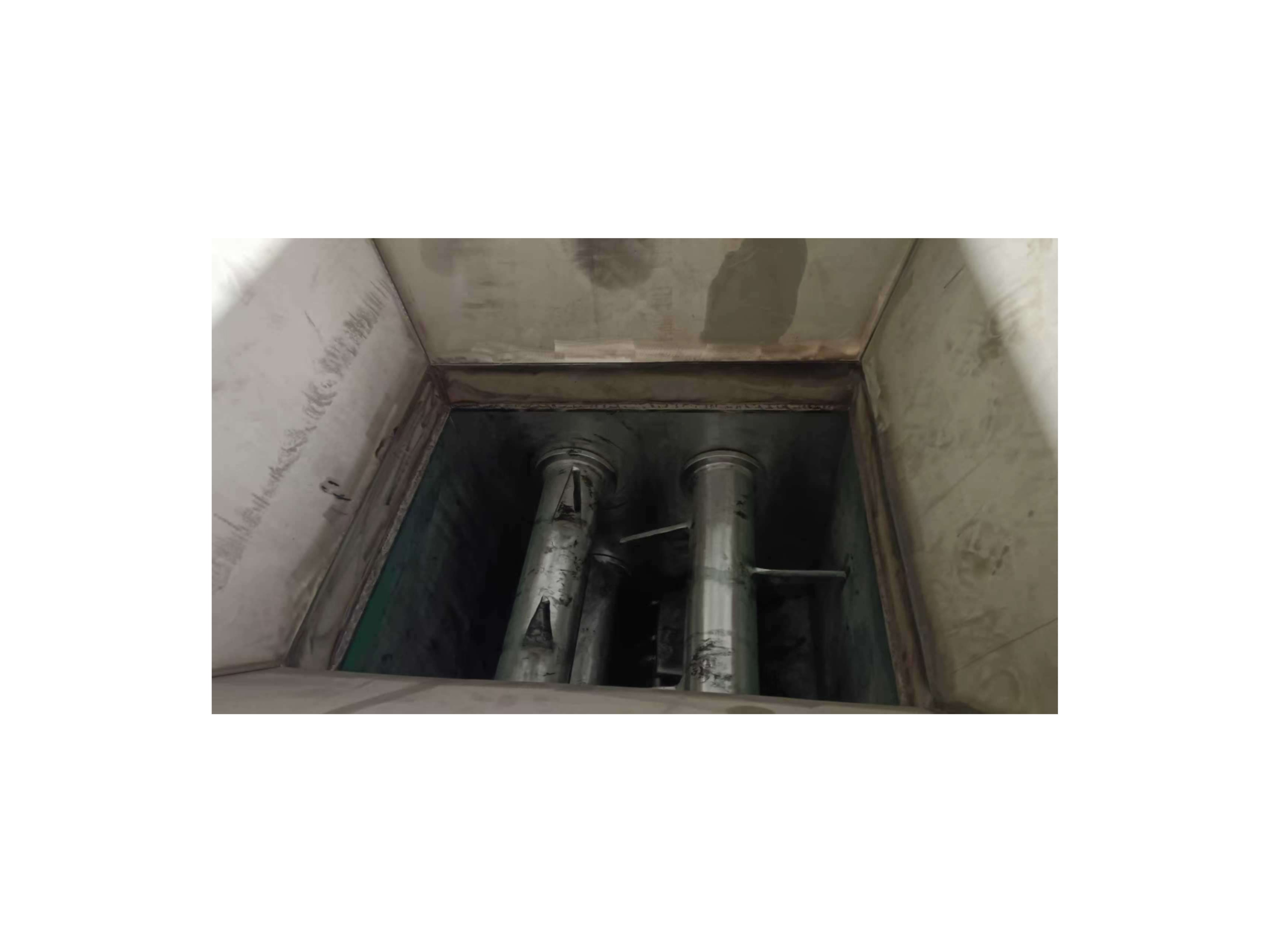

Bush is replaceable. At the rear part, there is a square feed hopper. The material is pressed into the
Head through the screen by rotating of screw.
(3). The gear ring of head is quick-lock bayonet type with hydraulic opening.
Screw Length -diameter ratio: 5: 1
Screw model: Double headed isometric such deep
1. Application:
It's used for straining the material of natural or reclaimed rubber out.
It can also be used to strain vamp glue and inner tire compound.
2. Feature:
(1). Screw form double threads, equal pitch and depth
(2). Match a single head or cutter head with hydraulic tightening
(3). Jacketed type barrel can be cooled for cooling the rubbers effectively.
(4) Smoothly running and high output.
(5) Equipped with die-head auto opening system when electric power is cut off.
3. Structure of the rubber strainer
(1). The rubber strainer consists of end, body, screw, reducer,
Coupling, motor, hydraulic head, base, water (steam) pipe and cabinet, etc.
(2). There is groove between the body and bush for running the steam or cooling water. The
Bush is replaceable. At the rear part, there is a square feed hopper. The material is pressed into the
Head through the screen by rotating of screw.
(3). The gear ring of head is quick-lock bayonet type with hydraulic opening.
| Model | XJL-150 | XJL-200 | XJL-250 |
| Screw Diameter(mm) | 150 | 200 | 250 |
| Length: Diameter | 1:5.14 | 4.5:1 | 4:1 |
| screw speed(r/min) | 53 | 45 | 40 |
| Motor Power | 37 | 55 | 110 |
| Steam Pressure (MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Cooling Water Pressure (MPa) | 0.2 | 0.2 | 0.2 |
| Capacity (kg/h) | 450 | 900 | 1800 |
| About Weight(T) | ~4.5 | ~8 | ~9 |
