Globe Star GADP 150 — Air Operated Double Diaphragm Pump (AODD)
Engineered for Superior Industrial Fluid Handling
The Globe Star GADP 150 is a high-efficiency air operated double diaphragm (AODD) pump designed for reliable performance in chemical, manufacturing, and industrial fluid transfer operations. Built with a robust Polypropylene (PP) body, it offers excellent chemical resistance, durability, and low maintenance for a variety of corrosive and abrasive media.
Key Features
High Performance: Delivers a maximum flow rate of 49 LPM at an operating pressure up to 120 PSI, suited for continuous-duty industrial applications.
Compact Design: Dimensions — 25 cm (W) × 30 cm (H) × 25 cm (L), ideal for installations with limited space.
Chemical Resistant Construction: Sturdy Polypropylene (PP) body ensures long-lasting chemical compatibility and strength.
Lightweight: Weighs just 2 kg, allowing easy installation and maintenance.
Suction Capacity: Provides a 4.5-metre dry suction lift, enabling effective priming across multiple fluid types.
Solid Handling: Efficiently handles soft solids up to 2.4 mm, enhancing pump versatility.
Connection Sizes:
Inlet/Outlet: ½" × ½"
Air Inlet: ¼"
Performance Advantages
Low noise and low vibration during operation
Excellent resistance to chemicals and abrasive liquids
Compact, durable, and portable design
Capable of operating efficiently in any position
Low maintenance cost with easy serviceability

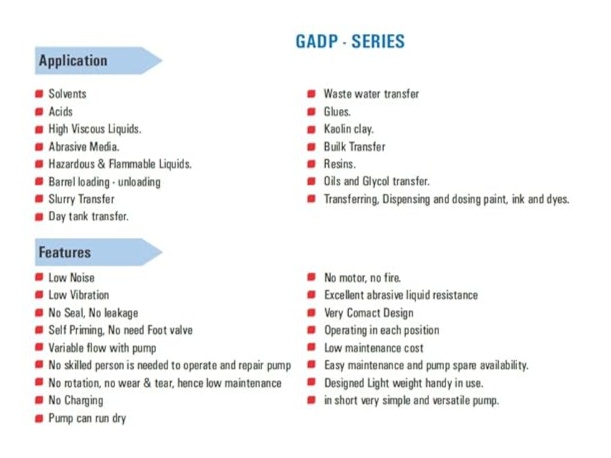

Applications
Suitable for a wide range of industrial fluid handling needs, including:
Solvents and acids
Corrosive and hazardous chemicals
High-viscosity and abrasive media
Slurry transfer operations
Paint, ink, and dye transfer or dosing
Barrel loading/unloading
Day tank transfer and wastewater pumping
Resins, oils, glues, glycols, and kaolin clay
Bulk transfer processes in chemical and process industries

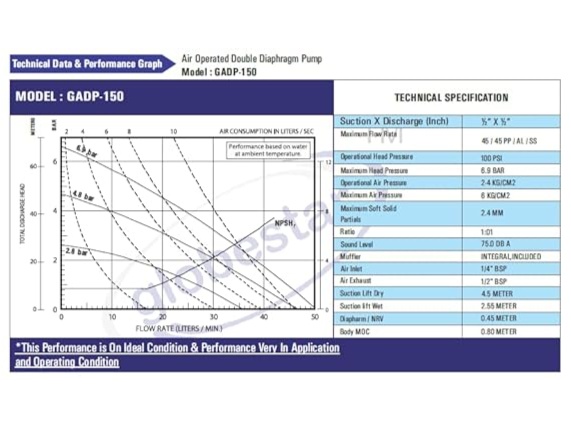

Product Specifications
| Parameter | Details |
|---|---|
| Model | GADP 150 |
| Brand | Globe Star |
| Material | Polypropylene (PP) |
| Pump Style | Diaphragm |
| Maximum Flow Rate | 49 LPM |
| Operating Pressure | Up to 120 PSI |
| Inlet / Outlet Size | ½" × ½" |
| Air Inlet | ¼" NPT |
| Suction Lift (Dry) | 4.5 metres |
| Solid Handling Capacity | Up to 2.4 mm |
| Item Weight | 2 kg |
| Dimensions (L × W × H) | 25 × 25 × 30 cm |
| Manufacturer | Globe Star Engineers (I) Pvt. Ltd. |
| Country of Origin | India |
Note: Packaging and transportation charges are not included in the product price and will be charged separately.
